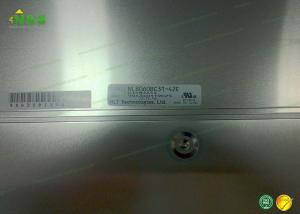

12.1 inch NL8060BC31-42E LCD Display Panel for Industrial Application by NEC

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Name: 121 inch NL8060BC3142E LCD Display Panel for Industrial Application by NEC
Brand: NEC LCD
Price: 1 USD

Brand Name : NEC LCD

Model Number : NL8060BC31-42E

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....

Supply Ability : 500PCS/DAY

Delivery Time : 1-2days

Packaging Details : Standard packing

Product number : NL8060BC31-42E

Brand : NEC

Size Of Panel : 12.1"

Resolution : 800×600

Brightness : 530

Contact Now

12.1 inch NL8060BC31-42E LCD Display Panel for Industrial Application by NEC

NEC NL8060BC31-42E General Features

Panel Brand :	NEC
Panel Model :	NL8060BC31-42E
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	12.1 inch
Resolution :	800(RGB)×600 , SVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	246×184.5 mm
Outline :	280×210 mm
Surface :	Antiglare
Brightness :	530 cd/m² (Typ.)
Contrast Ratio :	600:1 (Typ.)
Display Colors :	262K (6-bit) , CIE1931 40%
Response Time :	6/19 (Typ.)(Tr/Td)
Viewing Angle :	80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	2 pcs CCFL
Signal Interface :	CMOS (1 ch, 6-bit) , 41 pins
Input Voltage :	3.3/5.0V (Typ.)(VCC)

We Can Do for You

1) One-to-one service with efficient support;

2) Protection of your design and all your private information;

3) We could supply unique items;

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 5 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

12.1 inch NL8060BC31-42E LCD Display Panel for Industrial Application by NEC

N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
