Original Pegasus 5 inch Tianma LCD Displays 45 PIN digital TM050QDH04 350 cd / m²

Name: Original Pegasus 5 inch Tianma LCD Displays 45 PIN digital TM050QDH04 350 cd m
Brand: Tianma LCD Displays
Price: 1 USD

Wholesale Original Pegasus 5 inch Tianma LCD Displays 45 PIN digital TM050QDH04 350 cd / m² from china suppliers

Brand Name : Tianma LCD Displays

Model Number : TM050QDH04

Certification : CE

Place of Origin : SHANGHAI

MOQ : 1

Price : usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 24inch

Packaging Details : standard packing

Model : TM050QDH04

MFG : Tianma LCD Displays

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 5.0 inch

Response Time : 20 (Typ.)(Tr+Td)

Brightness : 350 cd/m² (Typ.)

Contact Now

The new factory original Pegasus 5 inch 45PIN LCD digital TM050QDH04 350 cd/m² (Typ.)

TIANMA TM050QDH04 Basic Information

Panel Brand :	Tianma
Panel Model :	TM050QDH04
Panel Type :	a-Si TFT-LCD , LCM
Application :	Phone
Operating Temperature :	-20 ~ 70 °C
Storage Temperature :	-20 ~ 70 °C
RoHS :	ROHS

TIANMA TM050QDH04 Mechanical Features

Panel Size :	5.0“”
Dot Resolution :	640(RGB)×480 (VGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	160 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.0529×0.1587 mm (H×V)
Pixel Pitch :	0.1587×0.1587 mm (H×V)
Weight :	86±4.3g
Surface :	Antiglare, Hard coating (3H)
Active Area :	101.568×76.176 mm (H×V)
Outline Dimension :	113.6×88.4 mm (H×V)
Outline Depth :	8.1/10.0 (Typ./Max.) mm
Holes & Brackets :	Face mounting holes (4 pcs) on left, right slugs
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise, we will replace the faulty battery with no extra charge or offer full refund.(human factors except).
5. Accept OEM service.

Original Pegasus 5 inch Tianma LCD Displays 45 PIN digital TM050QDH04 350 cd / m²

Product Tags:

lcd display white screen

lcd panel screen

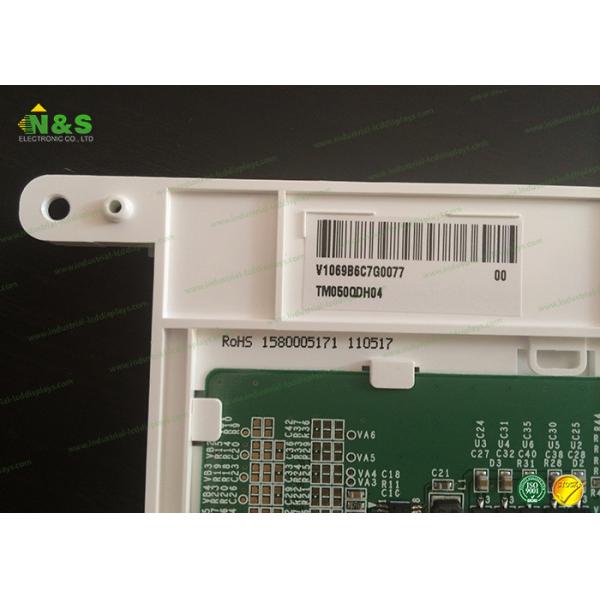

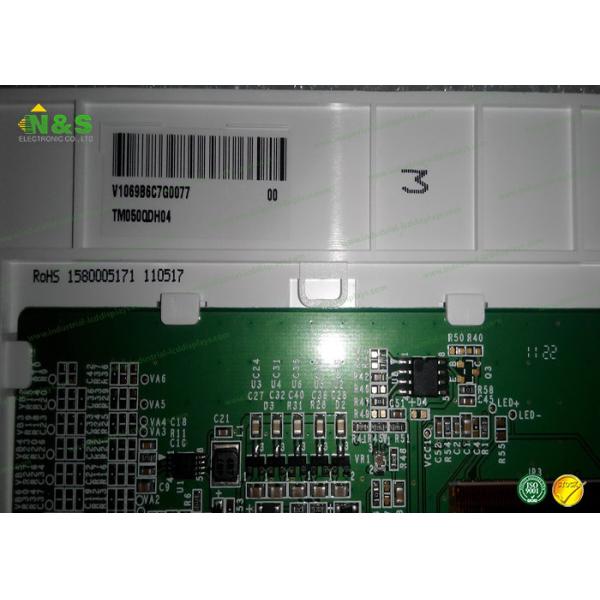

Original Pegasus 5 inch Tianma LCD Displays 45 PIN digital TM050QDH04 350 cd / m² Images
