202.8*139.425 mm 9.7 inch ED097OC4 Anti glare lcd screen Replacements for E Book Reader
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
PVI ED097OC4 General Features
| Panel Brand : | PVI |
| Panel Model : | ED097OC4 |
| Panel Type : | EPD , EPD |
| Panel Size : | 9.7 inch |
| Resolution : | 1200×825 |
| Active Area : | 202.8×139.425 mm |
| Outline : | 218.8×156.425 mm |
| Surface : | Antiglare, Hard coating |
| Contrast Ratio : | 12:1 (Typ.)(Reflective) |
| Display Colors : | Grayscale (4-bit) |
| Frequency : | 50Hz |
| Signal Interface : | Parallel Data (1ch, 8-bit) , 33 pins |
PVI ED097OC4 Mechanical Features
| Panel Size : | 9.7 inch |
| Dot Resolution : | 1200×825 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 150 PPI |
| Aspect Ratio : | 7:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.169×0.169 mm (H×V) |
| Pixel Pitch : | 0.169×0.169 mm (H×V) |
| Weight : | 80±5g |
| Surface : | Antiglare, Hard coating |
| Active Area : | 202.8×139.425 mm (H×V) |
| Outline Dimension : | 218.8×156.425 mm (H×V) |
| Outline Depth : | 1.18 (Typ.) mm |
| Landscape or Portrait : | Landscape / Portrait |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

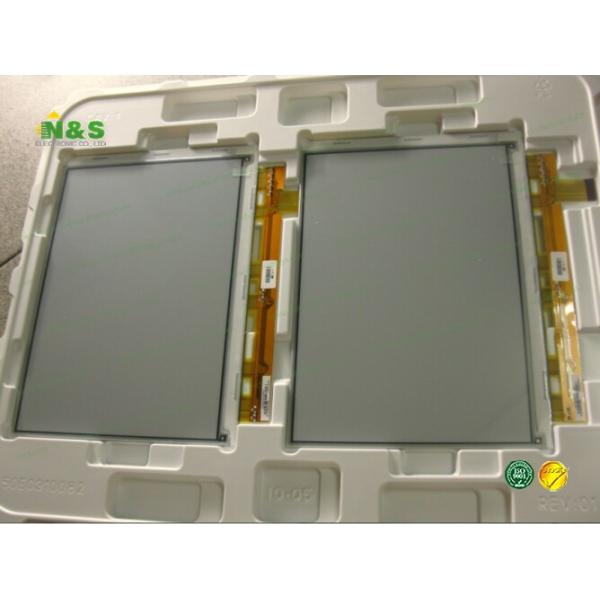

Details Pictures for ED097OC4 LCD Screen Replacements
