LQ070T5GG01S Sharp LCD Panel 7.0 inch with 154.08×87.05 mm Active Area
LQ070T5GG01S Detail
| Panel Brand : | SHARP |
| Panel Model : | |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
 | |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×87.05 mm |
| Outline : | 166×102 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : |  |
| Contrast Ratio : | 60:1 (Min.) |
| Display Colors : | |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | TFT Specific Analog RGB , 32 pins |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Panel Size : | 7.0 inch |
| Dot Resolution : | |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| | |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.372 mm (H×V) |
| Pixel Pitch : | 0.321×0.372 mm (H×V) |
| Weight : | 205g (Max.) |
| Surface : | | Antiglare, Antireflection | |
| Active Area : | 154.08×87.05 mm (H×V) |
| Outline Dimension : | |
| Outline Depth : | 7.5 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

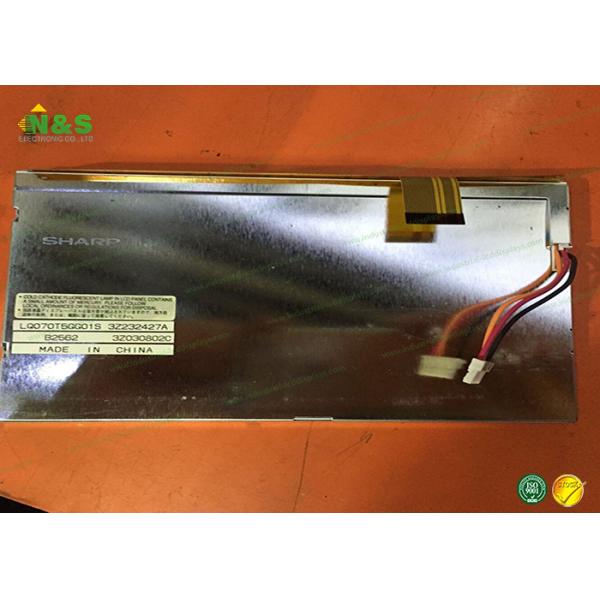

LQ070T5GG01S Picture
Product Tags:
|
|
LQ070T5GG01S Sharp LCD Panel 7.0 inch with 154.08×87.05 mm Active Area Images
|
