NEC NL8060BC26-27 medical lcd display , industrial lcd screen 10.4 inch

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

NEC NL8060BC26-27 medical lcd display , industrial lcd screen 10.4 inch

  • 1
  • 2

Brand Name : NEC

Model Number : NL8060BC26-27

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Resolution : 800(RGB)×600 , SVGA v

Display Mode : SA-SFT, Normally Black, Transmissive

Active Area : 211.2×158.4 mm

Outline : 243×185.1×11 mm

Surface : Clear, Hard coating (3H)

Brightness : 400 cd/m² (Typ.)

Contact Now

NEC LCD Panel NL8060BC26-27 10.4 inch with 211.2×158.4 mm Active Area

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.

NL8060BC26-27 Main Parameters

Panel Brand : NEC
Panel Model : NL8060BC26-27
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : SA-SFT, Normally Black, Transmissive
Active Area : 211.2×158.4 mm
Outline : 243×185.1×11 mm
Surface : Clear, Hard coating (3H)
Brightness : 400 cd/m2 (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 25/25 (Typ.)(Tr/Td)
Viewing Angle : 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : CMOS (1 ch, 6-bit) , 41 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC)

NEC NL8060BC26-27 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 475/500g (Typ./Max.)
Surface : Clear, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 243×185.1 mm (H×V)
Outline Depth : 10.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75)
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800
ED060SCT E Ink 6.0" 600×800
ET043OC1 E Ink 4.4" 360×640
EN133UT1 E Ink 13.3" 1600×1200
ED047TC1 E Ink 4.7" 540×960
ED133UT1 E Ink 13.3" 1600×1200
ES133UT1 E Ink 13.3" 1600×1200
ED060SCQ E Ink 6.0" 600×800
ED097OD2 E Ink 9.7" 1200×825
ED060KG1 E Ink 6.0" 1072×1448

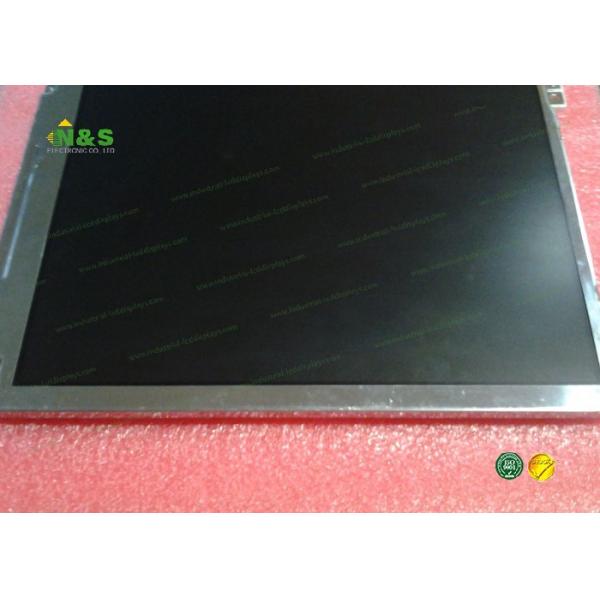

NL8060BC26-27 Picture

NEC NL8060BC26-27 medical lcd display , industrial lcd screen 10.4 inch

NEC NL8060BC26-27 medical lcd display , industrial lcd screen 10.4 inch
