Normally White LQ104V1DG62 10.4 inch sharp lcd display panels 640×480 Antiglare

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

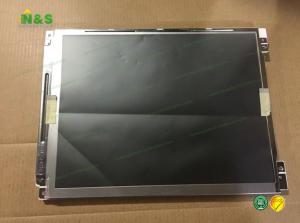

Normally White LQ104V1DG62 10.4 inch sharp lcd display panels 640×480 Antiglare

  • 1
  • 2

Brand Name : SHARP

Model Number : LQ104V1DG62

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD

Resolution : 640×480

Panel Size : 10.4 inch

Active Area : 211.2×158.4 mm

Outline : 246.5×179.4×12.5 mm

Contact Now

Normally White LQ104V1DG62 10.4 inch, 640×480 Antiglare, Hard coating (3H) new and original

LQ104V1DG62 Basic Information

Panel Model LQ104V1DG62
Panel Brand SHARP
Descrition a-Si TFT-LCD ,10.4 inch, 640×480
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.0G (19.6 m/s²)
Remarks Strong LCD2; Mass production from Dec. 2007

LQ104V1DG62 Mechanical Features

Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 76 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.110×0.330 mm (H×V)
Pixel Pitch 0.330×0.330 mm (H×V)
Weight 580g (Max.)
Surface Antiglare, Hard coating (3H), Antireflection
Active Area 211.2×158.4 mm (H×V)
Bezel Area 214.6×162.4 mm (H×V)
Outline Dimension 246.5×179.4 mm (H×V)
Outline Depth 12.5 (Max.) mm
Holes & Brackets Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ0DZC0156 SHARP 40" 1920×1080
LX080M1BB01 SHARP 8.0" 1920×1200
LS050K3SX09 SHARP 5.0" 720×1280
LQ315D1EG02 SHARP 31.5" 3840×2160
JE0DZ1C0093 SHARP 60" 1920×1080
LK460D3FZ10 SHARP 46" 1920×1080
LQ0DZC0128 SHARP 31.5" 1366×768
LQ0DASA469 SHARP 4.7" 720×1280
LQ133M1JW08A SHARP 13.3" 1920×1080
LK315T3HC1K SHARP 31.5" 1366×768
