Innolux LCD Panel , 7.0 inch ZJ070NA-01C 500:1 Glare Numeric LCD Display
Applications:
The maoyt. process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged
powder-coated steel enclosure, ensures maximum shock and vibration resistance. These monitors are ideal for a wide range of demanding applications including industrial, military, law enforcement, aviation, marine, inspection, surveying, cranes, oceanic, entertainment and transportation.
Backlight System :
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 3S8P
Lamp Shape : Array
Lamp Life Time : 15K(Min.) (Hours)
Lamp Voltage : 9.3/10.2V (Typ./Max.)
Lamp Current : 160/200mA (Typ./Max.)
Lamps Power Consumption : 1.488W (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No
INNOLUX ZJ070NA-01C Mechanical Features:
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 169 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.050×0.150 mm (H×V) |
| Pixel Pitch : | 0.150×0.150 mm (H×V) |
| Weight : | TBD |
| Surface : | Glare (Haze 0%) |
| Active Area : | 153.6×90 mm (H×V) |
| Bezel Area : | 156.4×92.8 mm (H×V) |
| Outline Dimension : | 165.75×105.39 mm (H×V) |
| Outline Depth : | 2.45±0.2 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Safety:
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Details Pictures for the ZJ070NA-01C Screen Display Panel:
Product Tags:
|
|

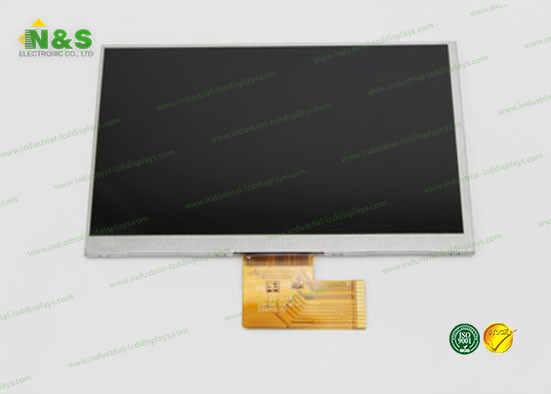

Landscape Type Color Tft Lcd Display ZJ070NA-01C With Panel Signal Interface Images
|
