CLAA080JA11CW 8.0 inch CPT Industrial LCD Screen 480RGB × 220 Dot Resolution

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

CLAA080JA11CW 8.0 inch CPT Industrial LCD Screen 480RGB × 220 Dot Resolution

  • 1
  • 2

Brand Name : CPT

Model Number : CLAA080JA11CW

Certification : ISO9001

Place of Origin : Japan,Korea,Taiwan

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Aspect Ratio : 17:9 (H:V)

Outline Depth : 6.5±0.3 mm

Pixel Pitch : 0.3765×0.4285 mm (H×V)

Resolution : 480(RGB)×220

Lamp Type : 3S7P WLED

Panel Type : a-Si TFT-LCD , Panel

Response Time : 30 (Tr+Td)

Input Voltage : 5/5/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

Contact Now

CLAA080JA11CW 8.0 inch CPT Industrial LCD Screen 480RGB × 220 Dot Resolution

CPT CLAA080JA11CW Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 3S7P
Lamp Shape : Array
Lamp Voltage : 12.0V (Typ.)
Lamp Current : 140mA (Typ.)
Lamps Power Consumption : 1.68W (Typ.)
Interface Type : Connector

Primary Competitive Advantages:

  • Price
  • Product Features
  • Product Performance
  • Prompt Delivery
  • Quality Approvals
  • Reputation
  • Service
  • Small Orders Accepted
  • Brand-name Parts
  • Country of Origin
  • Distributorships Offered
  • Electronic Link
  • Experienced Staff
  • Form A
  • Green Product
  • Guarantee/Warranty
  • International Approvals
  • Military Specifications
  • Packaging

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ72 CPT 4.5" 480×854
CLAN050WD61 6XM CPT 5.0" 720×1280
CLAD015GC41 AX CPT 1.5" 240×240
CLAA090WK05XN CPT 9.0" 1280×720
CLAC080XA12LW CPT 8.0" 1024×768
CLAD015GB01 AX CPT 1.5" 240×240
CLAG045LG71 XX CPT 4.5" 480×854

Pls contact to us for more stock information: salespm@nselectronic.com.hk

CPT CLAA080JA11CW Mechanical Features

Dot Resolution : 480(RGB)×220
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 65 PPI
Aspect Ratio : 17:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1255×0.4285 mm (H×V)
Pixel Pitch : 0.3765×0.4285 mm (H×V)
Weight : 225g (Typ.)
Surface : Antiglare
Active Area : 180.72×94.27 mm (H×V)
Bezel Area : 183.8×97.1 mm (H×V)
Outline Dimension : 193×108.3 mm (H×V)

Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed


Product Tags:

industrial lcd screen



industrial lcd panel


Wholesale CLAA080JA11CW 8.0 inch CPT Industrial LCD Screen 480RGB × 220 Dot Resolution from china suppliers

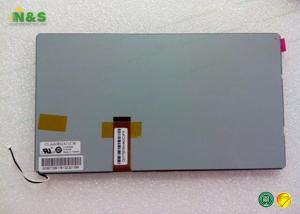

CLAA080JA11CW 8.0 inch CPT Industrial LCD Screen 480RGB × 220 Dot Resolution Images
